Aero Ice Free (AIF) has developed a unique mechanical deicing technology (Patented in Israel and in the USA) which enables steady and continuous flight in icing conditions, without any changes in flight performance. The technology provides significant advantages to the General Aviation and UAS deicing such as: low weight, low power consumption, low cost, easy to maintain system and ecofriendly solution.

The final product of AIF is a state-of-the-art composite material leading edge with integrated deicing capabilities.
With a strong combination of elegant solutions, breakthrough design and experienced management, AIF aims to become a leading player in the GA and UAS deicing world.

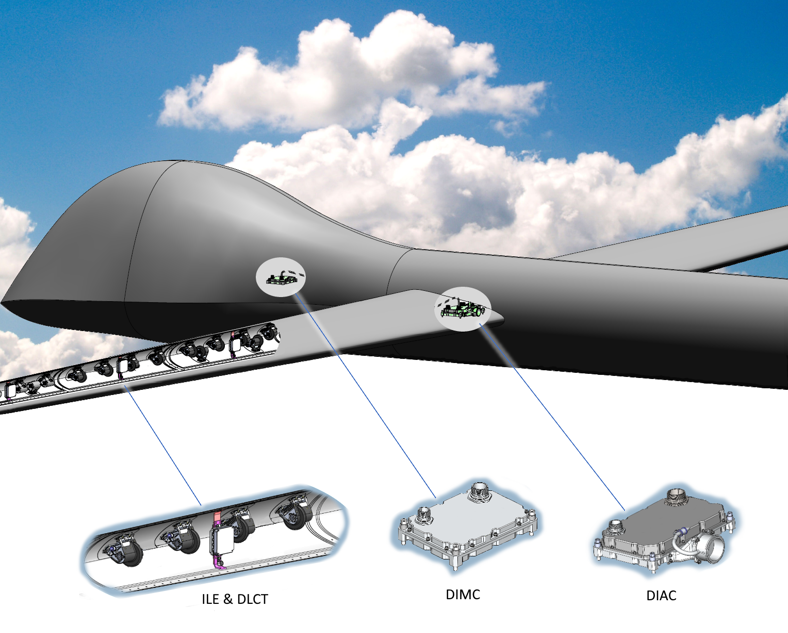

 De-Icing System Main Units:

• De-Icing Main Controller (DIMC)
• De Icing Area Convertor (DIAC)
• De Icing Local Control Tray (DLCT)
• Integral Leading Edge (ILE), comprised actuators mounted on skin composite structure

DE-ICING SYSTEM DATA:

PERFORMANCE

tem	Notes	Value	Units
Minimal ice thickness to De-Ice (no upper limit)		1.8	mm

ELECTRICAL

Item	Value	Units
Communication protocol	RS-232, RS-422, CAN
Power Supply	24	Vdc
Power consumption (1m span)	<300	Watt

MECHANICAL

Item	Value	Units
Physical Actuator dimension (HxWxL)	70x65x90	mm
Physical Actuator Weight	0.4	Kg
Weight (1m span)	1.2	Kg

ENVIRONMENTAL

Item	Notes	Value	Units
Operating temperature	Standard	-60 to +55	◦Celsius
Storage temperature	Standard	-60 to +85	◦Celsius
Shocks and vibrations	According to DO-160, MIL-810G
Sealing	IP65
